Industrial Crane Camera - Explosion Proof Camera Manufacturer

• Black Light Full-Color Camera: Achieves ultra-low-light full-color and no-light full-color imaging through the AI ISP image enhancement algorithm.
• AI AF Self-developed Deep Learning Algorithm Module: Enables faster focusing speed and more stable focusing performance.
• Built-in 2T Intelligent Computing Power: Supports in-depth algorithm learning to enhance the performance of intelligent event algorithms.
• Maximum Resolution: Up to 4MP (2688*1520), capable of outputting real-time full HD images at 2688*1520@30fps.
• Illumination Performance: 0.0001 Lux/F1.6 (color mode), 0.00005 Lux/F1.6 (black-and-white mode), 0 Lux with IR (infrared) support.
• Zoom Capability: Supports 30x optical zoom and 16x digital zoom.
• Gyroscopic Image Stabilization: Equipped with gyroscope anti-shake function.
• ICR Infrared Cut Filter: Features automatic switching to realize true 24/7 day-and-night monitoring.
• Excellent Low-Light Performance: Delivers fine and delicate image quality under low illumination conditions.
• 3A Control Support: Includes automatic white balance, automatic exposure, and automatic focusing.
• Adaptive Functions: Supports backlight compensation and automatic electronic shutter to adapt to different monitoring environments.
• Image Enhancement Technologies: Supports 3D digital noise reduction, strong light suppression, anti-shake, and wide dynamic range.
• Fog Penetration: Supports optical fog penetration to significantly improve image quality in foggy weather; also offers automatic fog penetration and intelligent fog penetration modes, which adjust fog penetration capability automatically based on scenarios.

Service

Parameters

Product Description

Advanced Surveillance for Industrial Crane Operations

Designed for heavy-duty crane monitoring, this camera fulfills the stringent operational needs of offshore and industrial sites requiring certified safety equipment. As a product from specialized explosion proof camera manufacturers, it targets safety engineers and facility managers demanding secure, continuous video acquisition in corrosive, high-risk environments. It ensures comprehensive inspection and real-time operational visibility, supporting decision-making and risk mitigation in crane handling tasks under hazardous conditions.

Cutting-Edge Optical and Imaging Technologies

Equipped with a 1/1.8" progressive CMOS sensor, this security surveillance camera delivers 4MP at up to 30fps, enhanced by AI-driven ISP algorithms for ultra-low-light full-color and starlight imaging capabilities. Its 30x optical zoom, supported by 16x digital zoom and gyroscopic anti-shake, guarantees image clarity even during crane vibrations. Additional technical specs include auto ICR day/night switching, multiple image enhancement modes, and industry-standard network protocols ensuring seamless integration with existing commercial surveillance cameras ecosystems.

Tailored for Rugged Industrial and Offshore Environments

This product is engineered for operational reliability in marine and heavy industrial contexts such as offshore platforms, oil rigs, and chemical plants where corrosion resistance and explosion protection are critical. The IP68/IP66-rated housing with anti-corrosion materials exemplifies design resilience. Security camera suppliers servicing hazardous zones value this model for its ability to operate reliably amid aggressive environmental conditions, facilitating crane operator safety and asset protection through advanced event algorithms and stable video streaming.

Product Advantages

Robust Structural and System Design for High-Risk Environments

The camera design incorporates explosion-proof certification compliant with Ex II 2G and 2D standards, ensuring safe use in flammable atmospheres. Its integrated cable and modular external interfaces, including network ports and alarm I/O, allow adaptation to complex security surveillance cameras systems. Structural anti-corrosion and IP68/IP66 enclosure materials extend operational life in marine and industrial settings. The gyroscopic damping mechanism stabilizes imaging under mechanical stress, aligning with requirements from top-tier cctv manufacturers for durable, heavy-industrial surveillance solutions.

Enhanced Performance and Operational Efficiency

This camera delivers consistent high-definition imaging under challenging lighting, with AI autofocus and 2T computing power enabling real-time event recognition and automated control functionalities. User interfaces support flexible focus modes and multiple streaming resolutions, facilitating interoperability within a security camera supplier’s existing infrastructure. Low power consumption and multi-voltage support optimize operational costs. These performance characteristics provide end users with reliable, clear visual data essential for safety compliance and process optimization in commercial surveillance cameras deployments.

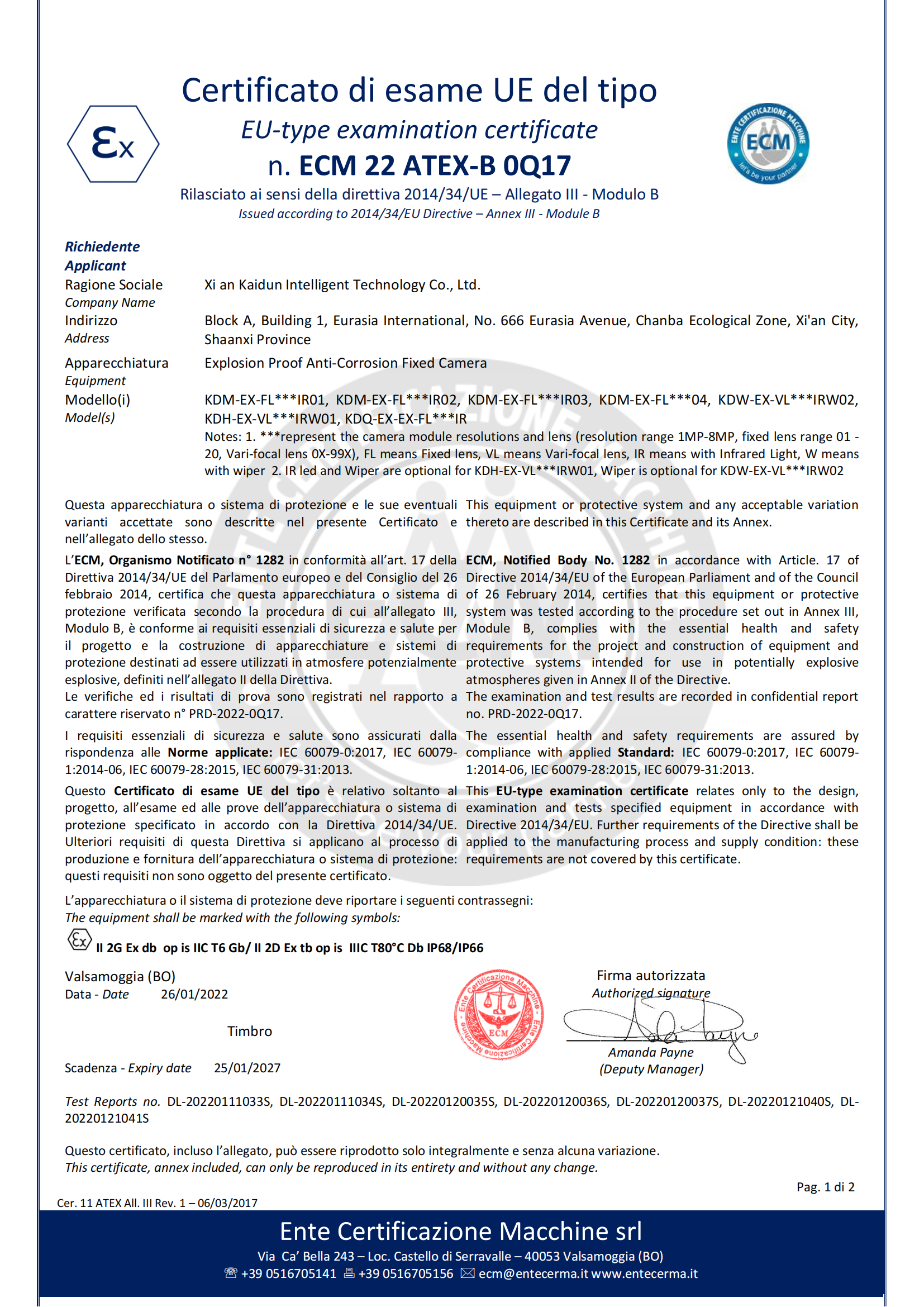

Certificate

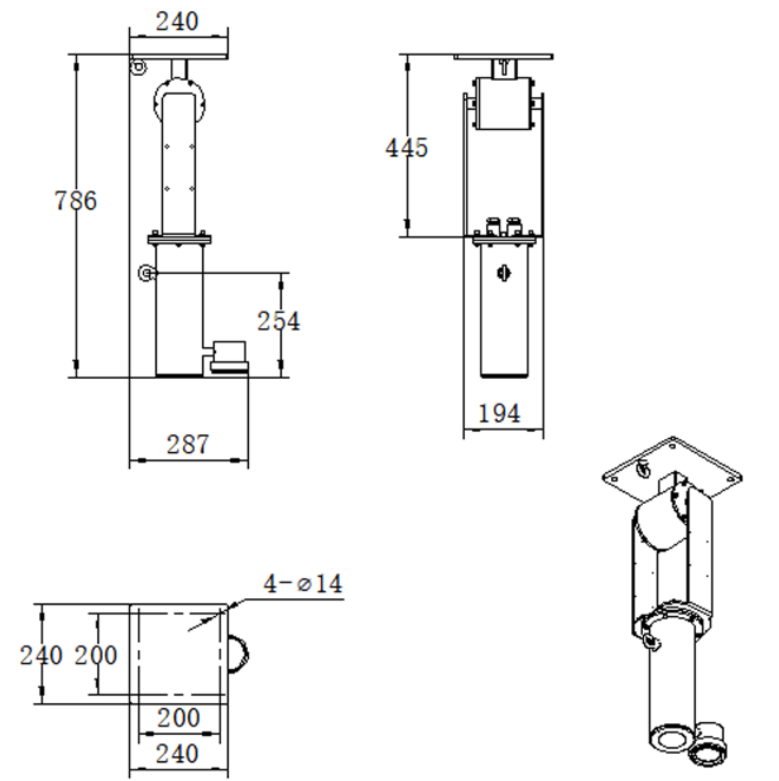

Dimensions

Accessories

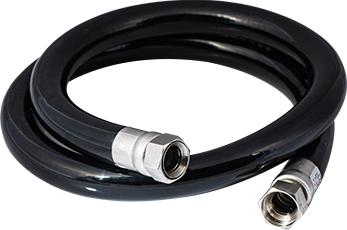

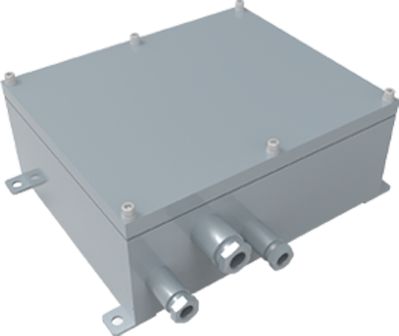

          SS316L Exe Type Juction Box                                                      Explosion Proof & Anti-corrosion Flexible Conduit

Service

Use Scenarios

Critical Role in Offshore Crane Hoisting Surveillance

In offshore oil and gas platforms, continuous monitoring of crane hoisting is vital to prevent accidents and ensure regulatory compliance. This explosion proof camera integrates into the site’s security surveillance cameras network, providing operators with detailed visual feedback on load positioning and hook status through its 30x optical zoom and starlight imaging. Its corrosion-resistant design and IP66/IP68 rating ensure uninterrupted operation in saltwater exposure and extreme weather. Deployment with existing control room systems enhances safety management workflows by enabling immediate responses to operational anomalies.

Industrial Crane Monitoring in Corrosive Chemical Plants

Chemical processing facilities with corrosive environments require surveillance solutions that guarantee reliability and safety. As part of a commercial surveillance cameras portfolio, this device provides high-resolution imagery with automatic exposure and backlight compensation to monitor crane movements precisely. Its anti-corrosion housing withstands harsh chemical fumes, while intelligent computing supports dynamic event detection for enhanced hazard prevention. Integration with plant-wide security camera supplier networks facilitates remote inspections and maintenance scheduling, contributing to both asset protection and worker safety.

FAQ

What certifications do your explosion proof cameras have?

Our cameras comply with stringent industry standards, including Ex II 2G Ex db op is IIC T6 Gb and IP68/IP66 ratings, ensuring reliable performance in hazardous environments. As leading explosion proof camera manufacturers, we prioritize certified quality for safe, continuous operation in challenging industrial settings.

Can you customize CCTV cameras for specific industrial needs?

Yes, we provide ODM and OEM services tailored for your requirements. Whether you need unique packaging, branding, or specialized functions, our expertise as a top security camera supplier ensures customized, corrosion-resistant cameras suited for marine and heavy-industrial use.

What is the recommended installation environment for your crane damping cameras?

Our 4MP 30X Ex-Proof cameras are built for crane-mounted surveillance in offshore and hazardous industrial areas. Featuring anti-corrosion materials, gyroscopic stabilization, and IP68/IP66 housing, they perform reliably amid vibration, saltwater exposure, and extreme weather typical of marine and industrial crane operations.

How do you manage delivery and support for international orders?

We partner with global express carriers such as DHL, UPS, and FedEx to ensure timely shipment of our commercial surveillance cameras. Our team provides professional after-sales support to assist with installation guidance and maintenance, supporting your project’s long-term operational success.
