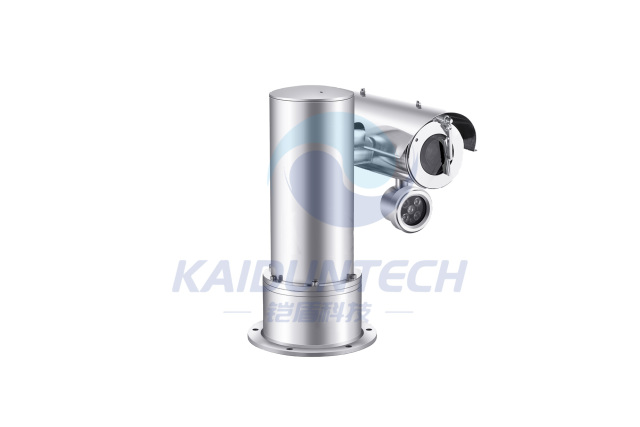

Name: DNV Type Approval Marine Grade Anti-Corrosion PTZ IR Camera
Brand: KAIDUNEX
SKU: KDY-EX-PTZ****IIRW02
Availability: InStock
Rating: 5 (1 reviews)

Description

Functional Integration for Maritime Security Operations
The DNV Type Approval Marine Grade Anti-Corrosion PTZ IR Camera is engineered specifically for maritime security professionals and system integrators requiring certified, durable surveillance solutions. This marine standard camera integrates seamlessly into marine cctv cameras system solutions, supporting vessel operators, port authorities, and offshore platform managers who demand reliable video monitoring under aggressive sea conditions. Its anti-corrosion camera build with stainless steel 316L ensures longevity against saline atmospheres, while classification society approval enhances confidence for strict marine compliance requirements. As a remote-controlled system, it facilitates efficient situational awareness critical for maritime safety enforcement and operational control centers.

Technical Precision and Measurable Performance Characteristics
Key technical specifications defining this anti-corrosion camera include IP68 ingress protection, guaranteeing resilience to dust and water ingress consistent with marine-grade classifications. The PTZ camera offers 360° horizontal and ±90° vertical rotation, combined with optical zoom options from 20x up to 44x, and multiple resolution settings ranging from 2MP to 8MP, providing clear and versatile image acquisition. Its infrared capabilities supported by a remote-operable wiper system ensure uninterrupted surveillance during night or adverse weather. The unit’s stainless steel 316L construction with anti-corrosion treatment aligns with DNV type approval standards, delivering proven durability in aggressive marine environments. Additionally, embedded intelligent features such as intrusion alarms and automatic tracking enhance operational effectiveness.

Industry Applications and Operational Efficiency in Marine Environments
This DNV type approval camera is applicable across a variety of marine infrastructures, including vessel monitoring, offshore platforms, port and harbor security, and coastal installations. Its classification society approval allows integration into marine cctv cameras system solutions that facilitate regulatory compliance and smooth operational workflows. By enabling continuous real-time observation with robust weather resistance and advanced imaging, it mitigates risks of unauthorized access, improves cargo and crew safety, and supports maritime law enforcement agencies. This comprehensive solution enhances situational awareness, asset protection, and incident response capabilities essential for optimizing marine operational procedures efficiently and securely.

Product Advantages

Structural and System Design Superiority
The camera’s structural design leverages marine-grade stainless steel 316L with specialized anti-corrosion coatings to withstand prolonged exposure to salt spray, humidity, and temperature fluctuations typical of marine environments. The IP68 certified enclosure ensures superior water and dust resistance, meeting stringent marine standard camera requirements. Modular mounting options—including wall, column, and overhead installations—enable versatile integration within complex marine cctv cameras system solutions. Additionally, the DNV type approval cameraclassification society approval consolidates trust in compliance and interoperability with maritime safety standards, simplifying system design and streamlining procurement for marine security infrastructure.

Enhanced Performance and Operational Usability
Performance-wise, the anti-corrosion camera delivers high-resolution imaging up to 8MP combined with long-range optical zoom, facilitating detailed situational awareness. Its infrared illumination with a dedicated wiper maintains image clarity in low light and adverse weather conditions, crucial for continuous marine surveillance. The PTZ mechanism ensures comprehensive spatial coverage with swift, precise movements adaptable to dynamic monitoring needs. Integrated smart features like intrusion detection and automatic tracking increase utility while minimizing operator workload. This marine standard camera enhances operational efficiency by providing dependable, high-quality video feeds essential for timely decision-making in critical maritime security environments.

Type	KDY-EX-PTZ****IRW02
Material	Stainless Steel 316L
Protection Class	IP68
Temp.range min	-40℃
Temp.range max	+60℃
Vibration(0-100Hz)	0.7g
Video	IP
Operational Areas	Outdoor

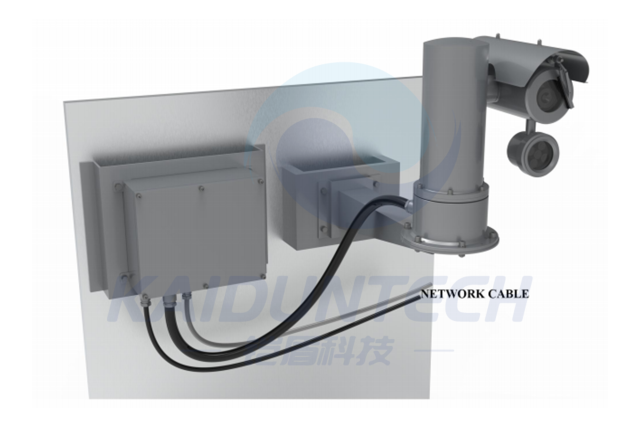

Mounting	Wall mounted ,column ,Upside etc
Wiper /IR	Wiper /IR
Pan/Tilt	Remote operated
Rotation Vertical	±90°
Rotation Horizontal	360°
Surface	powder coating or electric polishing
Resolution	2MP ,3MP ,4MP ,5MP ,8MP etc
Zoom	20x ,30x ,44x etc
Image Sensor	1/2.8" Progressive Scan CMOS
Min. illumination	Color: 0.002 lux @ F1.2 (AGC ON),B/W: 0.0002 lux @ F1.2 (AGC ON)
CCTV add-on	Heater ,fan
Functions	Cross-line detection, intrusion alarm, illegal parking, automatic tracking, face detection etc
Voltage	AC100V-240V
Weight	21kg

Use Scenarios

Vessel and Offshore Platform Security Monitoring
In the maritime transport and offshore energy sectors, this DNV type approval marine camera is deployed to continuously monitor crew safety, cargo status, and perimeter security on vessels and offshore platforms. The anti-corrosion camera’s robust stainless steel housing withstands corrosive saltwater exposure, while the IP68 rating secures operation during heavy rainstorms or sea spray. Its high-definition video feed integrates with shipboard marine cctv cameras system solutions used by security teams and command centers to detect unauthorized boarding, equipment tampering, or emergency situations. The camera’s classification society approval supports adherence to maritime regulatory frameworks, enabling reliable documentation and incident review processes essential for operational compliance.

Port and Harbor Asset Protection and Safety
Within port facilities and harbors, this marine standard camera functions as a critical component for perimeter security, traffic control, and cargo monitoring. Its DNV type approval ensures the camera meets demanding environmental and functional standards required in these applications. The anti-corrosion camera withstands exposure to industrial pollutants and fluctuating temperatures common in port environments, while PTZ functionality and infrared capabilities facilitate 24/7 surveillance regardless of lighting conditions. Integration into broader marine cctv cameras system solutions allows coordinated monitoring across multiple access points, enhancing situational awareness, reducing theft or unauthorized access, and supporting operational efficiency and safety compliance across port operations.

FAQ

What materials are used in the DNV Type Approval Marine Grade Anti-Corrosion PTZ IR Camera?
This camera features a robust stainless steel 316L enclosure combined with advanced anti-corrosion treatments. Its durable design ensures reliable performance in harsh saline and marine environments, exceeding requirements for a marine standard camera.

Can the PTZ camera be customized for different operational needs?
Yes, the device supports multiple resolution configurations ranging from 2MP up to 8MP, with optical zoom options of 20x, 30x, and 44x, enabling tailored solutions for diverse surveillance demands within marine CCTV cameras system solutions.

What installation options are available for this marine-grade camera?
The camera supports flexible mounting options including wall, column, and upside mounting. This versatility allows seamless integration into various marine settings, such as offshore platforms, ports, or vessel decks requiring classification society approval camera standards.

How does the camera handle maintenance and adverse weather conditions?
Equipped with an IP68 rating and a remote-controlled wiper for the lens, the camera ensures optimal visual clarity even in extreme weather. Its corrosion-resistant housing further minimizes maintenance needs, supporting long-term operation in harsh marine environments.
