T-Type Multispectral Medium-Load PTZ Camera

No.MCL-PT003
  • The MCL-PT003 is a long range camera equipped with an observation-type thermal imaging lens
  • Spherical rotational structure allows for multi-angle observation with horizontal range of 0° to 360° and vertical range of -70° to +45°
  • T-Type Multispectral Medium-Load PTZ Camera

Description

Application Environment
Forest fire prevention application
Forest Fire Prevention
Army border guard application
Army Border Guard
Army coastal defense application
The Army Defends the Coast
Ship monitoring application
Ships
Shipping port monitoring
Shipping Port
Unlike manual zoom lenses, electric zoom lenses are used in a wide range of outdoor scenes covering extensive focal lengths. The focal length can be adjusted remotely to zoom in on important areas, providing excellent monitoring capabilities. With continuous development in the security industry and increased infrastructure investment, demand for electric zoom lenses has grown significantly in urban security, highways, railways, forest fire prevention, maritime management, ports, border defense, and oil fields.

Main Features
Material Aluminum Alloy  (with powder coating)
Protection Class IP66
Working Temperature -40℃~+65℃
Working Humidity <90%
Video IP
Visible Resolution 4MP
Visible Focal Length 40x optical zoom
Thermal Resolution 640*512
Thermal Length 100mm
Motor & Transmission Method Torque Direct-Drive Motor Precision Spur Gear Transmission
Rotation Range Horizontal: 0~360° (0.17°~180°/s)
Vertical: -90°~+90° (0.17°~130°/s)
Function T-Type Bilateral Load (3Kg per side),Gyro Stabilization, Optical Fog Penetration Machine, Pedestrian, Non-motor Vehicle and Vessel Recognition
Voltage DC24V (≤55W)
Weight ≤20kg
Dimensions (H*L*W) 315*245*475mm
Mounting Formal Installation, Four-Point Base Fixation

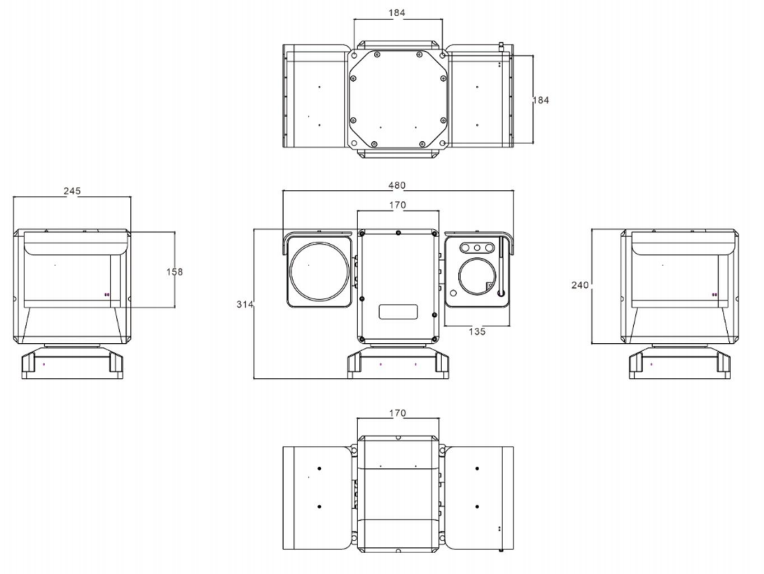

Dimensions
